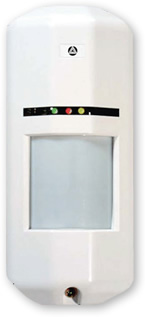

Aleph XC-1XT Passive Infrared Detector (PIR)

Aleph XC-1XT Passive Infrared Detector (PIR)

• Dual Tech - Combination Microwave PIR
• Indoor / Outdoor Motion Detector
• Microwave Sensitivity Adjustment
• 100 lb. Pet Immunity
• 2 Form "C" Relays
• Temperature Compensation
• RFI & White Light Immunity
• Fully Sealed Water Proof Housing
• UV, Water and Bug Proof Construction
• PIR Sensitivity with Pulse Count
• Selectable Dual Mode / Disable LED
• Selectable Enable / Disable LED
• PIR Only Mode Switch
• Tamper Switch
• Detection Range:  40 ft x 56 ft (12m x 17m)
• Color:
• UPC:  6938942620114  (White)  P/N:  XC-1XT



Specifications

Specifications	XC-1XT
Pattern Coverage - Wide	(15.24m x 12.19m)  50' x 40'
Pattern Coverage - Long Range	(2.13m x 19.8m)  7' x 65'
Selectable Pulse Count	2/4
Selectable PIR Sensitivity	60% ~ 120%
LED Display	PIR, Microwave, Alarm
Operating Temperature	-20° C ~ +50° C (-4° F ~ +122° F)
Power Supply	10.5 - 16VDC
Current Consumption	35 mA max

Other Part Numbers:  XC1XT, XC-1XT, AL-XC-1XT, ALP-XC-1XT


    Download - Aleph Aleph XC-1XT Passive Infrared PIR Detector Installation Guide.pdf
