Lenovo 40B00135US ThinkPad Universal Thunderbolt 4 Dock

<< Previous in PC Support Next in PC Support >>
Lenovo 40B00135US ThinkPad Universal Thunderbolt 4 Dock
Lenovo 40B00135US ThinkPad Universal Thunderbolt 4 DockLenovo 40B00135US ThinkPad Universal Thunderbolt 4 DockLenovo 40B00135US ThinkPad Universal Thunderbolt 4 Dock
MSRP: $339.99
Price: $249.99
You Save: $90.00 (26 %)
In stock: 5
Item Number: 40B00135US
Manufacturer Part No: 40B00135US

ThinkPad Universal Thunderbolt 4 Dock - Overview

Overview and Features

The ThinkPad® Universal Thunderbolt™ 4 Dock (40B0) is engineered to expand into new horizons. Bringing forth the next generation of Intel® Thunderbolt™ technology, packed with game-changing features like support for 8K @ 30 Hz display, Intel® vPro® functionality support (*1), smart remote manageability, and dynamic power charging up to 100W. The ThinkPad Universal Thunderbolt™ 4 Dock truly is the pinnacle of premium docking.

Features:

  • One Cable. All Your Needs: A single Thunderbolt™ cable is all you need to take your productivity to new heights. Adding an 8K @ 30 Hz display or up to four 4K @ 60 Hz displays, lightning-fast 40 Gbps transfer speeds, vPro® pass-through support, and enhanced dynamic power charging up to 100W. You can do it all with the ThinkPad® Universal Thunderbolt™ 4 Dock.
  • Compatibility. Made Limitless: Freedom is the key to productivity. That’s why we’ve engineered the ThinkPad Thunderbolt™ 4 Dock to be limitlessly adaptable — supporting up to 100W PD and unrivaled performance on all Thunderbolt™ 3 and 4, USB 4, and USB-C Windows-based systems (*2).
  • Remote Management. But Smarter: Remote dock management just got a whole lot smarter. Thanks to Lenovo Dock Manager and our latest hardware, firmware updates can be done without any end-user interruption, which means productivity is never compromised.

Compatible with Lenovo Docking Station Mounting Kit (4XF0S99497)

For more information, click: ThinkPad Universal Thunderbolt 4 Dock (40B0) brochure

Notes*:

  1. Intel® Active Management Technology capable with select 11th Generation Intel® Core™ vPro® processor-based PCs only.
  2. Lenovo USB-C & Thunderbolt™ Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt™ protocols through their Type-C™ port. Lenovo USB-C and Thunderbolt™ Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

For information on the ThinkPad Thunderbolt 4 Workstation Dock (40B0), click: ThinkPad Thunderbolt 4 WorkStation Dock (40B0) - Overview and Service Parts
Thunderbolt 4 Workstation dock

Physical Specifications:

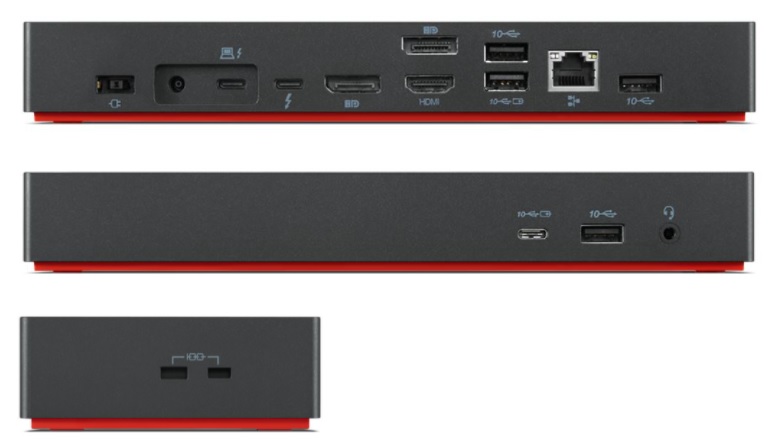

  • Thunderbolt Port:
    • One Thunderbolt Port - for Host connect
    • One Thunderbolt Port - for Device connect
  • Video Ports:
    • One HDMI 2.1
    • Two DisplayPort 1.4
  • USB Ports:
    • Four USB
    • One USB-C
  • Audio Ports: 3.5mm Audio combo Jack
  • Ethernet: Gigabit Ethernet
  • Physical Security Feature:
    • One NanoSaver lock slot
    • One MicroSaver lock slot
  • Maximum number of external Monitors: 4
  • Charging Port: DC-IN
  • Color: Black/Red
  • Dock Measurements:
    • Length: 220 mm (8.7 inches)
    • Depth: 80 mm (3.1 inches)
    • Height: 30 mm (1.2 inches)
    • Weight: 0.45Kg (1.0 lb)

Package Specification:

  • Packed Dimensions:
    • Length: 270 mm (10.6 inches)
    • Depth: 195 mm (7.7 inches)
    • Height: 85 mm (3.3 inches)
    • Weight: 1.2 Kg (2.6 lb)

Electrical Specifications

  • Input Power: 20V 6.75A
  • Power Delivery: Yes
  • Output Power: Max 100W
  • Power Button: Yes
  • Power Plug: Slim Tip

Operating Environment:

  • Minimum Operating Temperature: 0 celsius
  • Maximum Operating Temperature: 40 celsius
  • Minimum Relative Humidity (%): 5
  • Maximum Relative Humidity (%): 95

Maximum Resolution Support and Refresh Rate:

  • One at: 8K 30Hz Via HDMI 2.1
  • Four at: 4K 60 Hz

Agency Approvals:

cULus, FCC,ICES,NOM
