Aleph MY-60 Dual Photoelectric Beams 60m

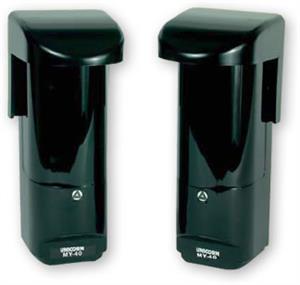

Aleph Unicorn MY-60 Photoelectric Dual Beam Detectors

One of our most popular Dual Beams, Photoelectric Detectors provides the most advanced features in a very attractive, compact weather resistant design. Included in our "MY" series are Dual Beam - Pulse Infrared, Sealed Optics, Variable Beam Interuption Time, Indoor/Outdoor Use, Metered Voltage Outputs, and Simple-To_Use Viewfinder for Easy Alignment.

Photo Beams (Invisible Fence) can be used for defense perimeter security, entry alert or as a trigger for an open/close gate system. Solutions for many applications, which require both beams to be broken in order to trigger (NO/NC) an event.

• Indoor, Outdoor Use
• Dual Photo Beam - Pulsed Infrared, Sealed Optics
• Alarm Trips Only When Both Beams are Interrupted
• Normally Open Loop (NO)
• Dry Contact Relay Output
• No Heater Required
• Variable Beam Interruption Time
• 50 msec to 500 msec
• Operational -13 F to 131 F
• Kit Includes Wall/Pole Mounting Hardware
• Detection Distance
• 60 meters Outdoors (200 ft)
• 120 meters Indoors (400 ft)
• Color:
  • UPC:  701980451898  (Black)   P/N:  MY-60



Specifications

Specifications	MY-60
Coverage, Outdoor	60 m. / 200 ft.
Coverage, Indoor	120 m. / 400 ft.
Sensing Type	Pulsed Active Infrared
Alarm Output	Form A or Form B / NC/NO (selectable), 24 VDC / 200 mA
Alarm Duration	2 sec. ±1 sec.
View Adjustment	Horizontal 180° (±90°), Vertical 10° (±5°)
Supply Voltage	11 to 26 VDC
LED Indication	Power On: Green; Standby/Power On: Green; Alarm: Red
Current Draw	17 mA / 27 mA
Application	Indoor / Outdoor
Temperature Range	-25° C to 55° C (-13° F to 131° F)
Mounting Type	Wall or pole mount
Construction	Black polycarbonate
Weight	Transmitter: 340 g (0.75 lb.); Receiver 350 g (0.8 lb)

* Other Part Numers: MY60, MY-60, MY60, MY-60, ALMY60, AL-MY-60, ALMY60, AL-MY-60, ALPMY60, ALP-MY-60, ALPMY60, ALP-MY-60
Security Dual Photo Beams can be used as a perimeter alarm and detection system; great for invisible fencing needs.


  Download - Aleph_MY-60_Dual_Photoelectric_Beams_Installation_Manual
