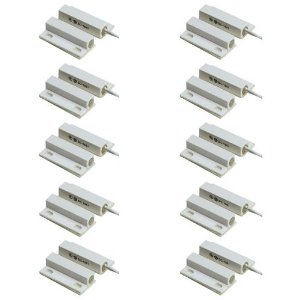

Aleph DC-1561 Magnetic Alarm Contact Mini Surface Mount - 10 Pack

<< Previous in Security Next in Security >>

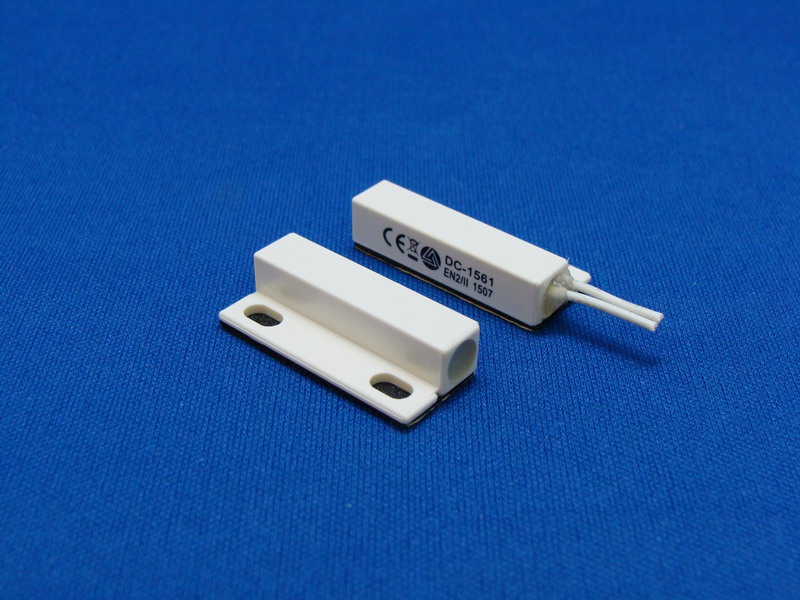

Aleph DC-1561 Surface Mount Alarm Magnetic Contact
Aleph DC-1561 Surface Mount Alarm Magnetic ContactAleph Magnetic Contact DC-1561 Mini Surface Mount - 10pkAleph DC-1561 Dimensions
MSRP: $20.68
Price: $15.84
You Save: $4.84 (23 %)
Manufacturer: AI NEXT, LLC
Manufacturer Part No: DC1561

Product Options



AI NEXT DC-1561 Magnetic Alarm Contact Mini Surface Mount
(Formerly:  Aleph DC-1561)


Features

  • Mini Surface Mount Magnetic Contact (Door and Window Alarm)
  • High Quality Magnetic Contact
  • Hermetically Sealed Switch
  • Rhodium Over Gold Reeds
  • High Grade Matching Magnets
  • Normally Closed (NC) Loop (C/C LOOP)
  • Adhesive Tape Included
  • Nail or Screw Mount with cut away Flange

Specifications

Switch Type: Form A Single-Pole Single-Through (SPST) Reed
Max Contact Rating: 30VDC, 0.2A (200mA), 5W
Gap: 1” (25.4mm)

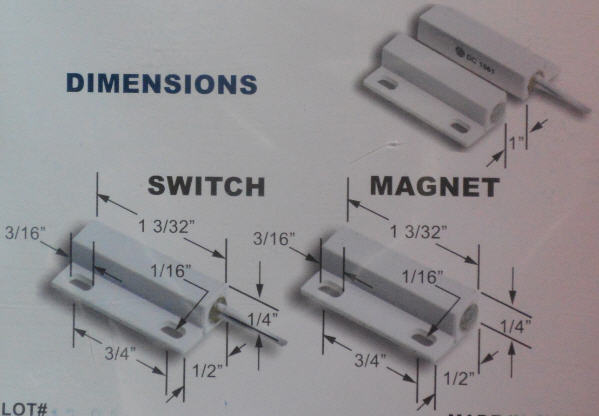

Dimensions: 1 3/32" L x 1/2" W x 1/4" H
Connection: 12” Wire Leads (UL-1007 AWG#22)

Colors Available

White DC-1561W  UPC:  6938942610367
Brown DC-1561B   UPC:  6938942610374
Gray DC-1561G   UPC:  6938942610381


          CE RoHS Logo          ISO 9001 Certified
                   LIFETIME GUARANTEE
          EN50131-1:2004, TS50131-2-6:2004, PD6662:2004
             SECURITY GRADE 2, ENVIRONMENTAL CLASS II

Other Part Numbers:  DC1561, DC-1561, AL-DC-1561, AL-DC1561, DC1561W, DC-1561W, AL-DC-1561W, AL-DC1561W, DC1561B, DC-1561B, AL-DC-1561B, AL-DC1561B, DC1561G, DC-1561G, AL-DC-1561G, AL-DC1561G

Cross Reference:  Honeywell 943WG, ADEMCO 943, PR-20443, IntelliSense MPS45, GRI 50F-12, Sentrol/GE 1145, 1032, 1035, Tane FM102
