Aleph APX-101 Passive Infrared Detector (PIR)

<< Previous in Security Next in Security >>

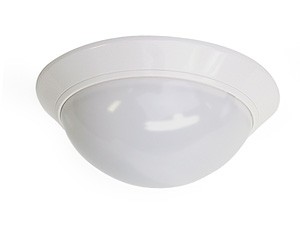

Aleph APX-101 Passive Infrared (PIR) Detector
MSRP: $275.63
Price: $245.00
You Save: $30.63 (11 %)
Out of stock
Item Number: APX-101
Manufacturer: AI NEXT, LLC
Manufacturer Part No: APX-101

Quantity Discounts

20 to 59$232.75
60 to 99$220.50
100 to 9999$196.00

Aleph APX-101 High Ceiling Passive Infrared Detector (PIR)

The Aleph APX ceiling mount sensors are dedicated high ceiling PIR intrusion detectors. Each model is Pet Immune with choice switch selectable sensitivity. With selectable Pulse Count and Sensitivity adjustments the APX allows absolute detection all interior security applications.
  • 64 Detection Zones
  • Standard Low Sensitivity Adjustment Control
  • Pulse Count and LED Selectable
  • Selectable Pet Immunity
  • Wide Angle 39.4' x 45.9' (12m x 14m)
  • Color:
  • UPC:  6938942620366 (White)  P/N:  APX-101


SpecificationsAPX-101/Wide Angle
Pattern Coverage Length 40 Ft.
Width 50 Ft.
Detection Method Passive Infrared
Detection Zones 32 Zones
Detection Speed 0.6 to 16 Ft./Sec.
Sensitivity 2 Ft./Sec. @ 70° F
Pulse Count 2 to 4 (selectable)
Sensitivity Adjustment Dual Settings Standard / Low - Animal immunity (AI APX-101 Only)
Power Supply 10 to 28 VDC
Current Draw 22 mA MAX at 12 VDC
Operating Temperature -4°F to +122°F
Environment Humidity 95% MAX
Warm up Period 40 +2 Sec. (Red LED Blinks)
Alarm Display Red LED Monitor (on/off selectable)
Alarm Period 2 ±0.5 Sec.
Alarm Output N.C. Dry Contact, 30V, 350 mA (photo MOS Relay)
Alarm Memory Display Yellow LED Monitor (on/off selectable)
Tamper Output N.C. /Dry Contact. Rating 30VDC / 100mA max
Dimensions 2.17" (H) x 5.87" Dia. / 55mm x 149mm
Weight 7 oz. / 200g

                                Download - Aleph XA100 Dual Photoelectric Beams Spec sheet
Download the complete specifications sheet
