Aleph AL-44 Passive Infrared Detector (PIR)

<< Previous in Security Next in Security >>

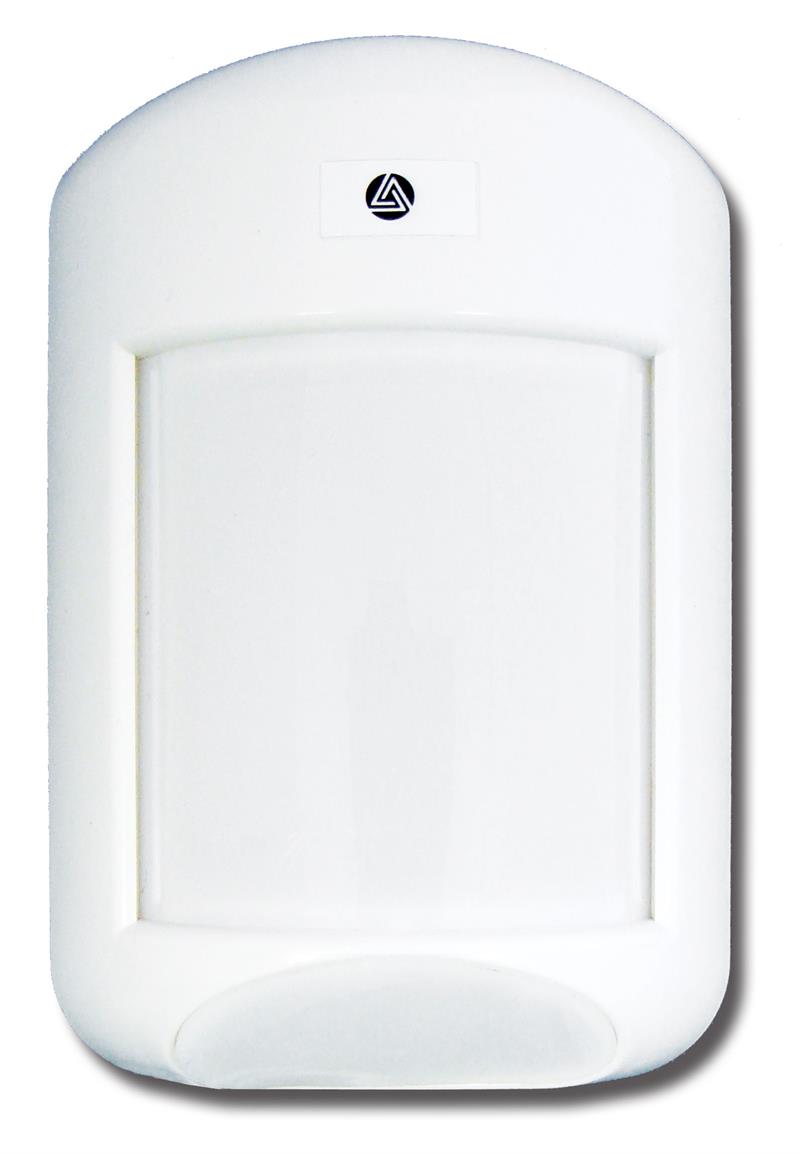

Aleph AL-44 Passive Infrared (PIR) Detector
MSRP: $11.28
Price: $8.64
You Save: $2.64 (23 %)
In Stock: 939
Item Number: AL-44
Manufacturer: AI NEXT, LLC
Manufacturer Part No: AL-44

Quantity Discounts

QuantityAmount
20 to 59$8.20
60 to 99$7.77
100 to 9999$6.91
  • QMA - Qualified Motion Analysis
  • Digital Operating System
  • Rock Solid RFI immunity
  • Dual Slope Temperature Compensation
  • 60 lb. Pet Immunity
    • Optional 100 lb. Animal Immunity Lens Included
  • Multi-function LED
    • Ambient Temperature Detection,
    • Self-dimming LED
  • Light Protection
  • Detection Area 40' x 56' (12m x 17m)
  • Color:
    • UPC:    (White)  P/N:  AL-44



Specifications

SpecificationsAL-44
Type QMA - Qualified Motion Analysis
Input Voltage 10.6 to 16VDC
Input Current 15 mA maximum, 10 mA quiescent (approx.)
Pyro Type Dual element
Pulse Count 2/4 pulses (selectable)
Warm Up Period 50 secs. max.
Alarm Period 2.4 secs, retriggerable
Visual Indicator Red Alarm LED (selectable on /off )
Alarm Output NC dsolid state, 19 VDC, 100 mA, 13 ohms resistance typ.
Tamper Output NC, dry contact, 30 VDC, 500 mA, 5 W max.
Mounting Height 6.5 to 8.5 ft. (2 to 2.6m)
OperatingTemperature +14° F to +131° F; Humidity: 95% max.
Dimensions 3.9" (98mm) L; 2.5" (64mm) W; 1.7" (42mm) H
Weight 3.0 oz. (83.5g)


Other Part Numbers:  AL44, AL-44, AL-AL44, AL-AL-44, ALP-AL44, ALP-AL-44
