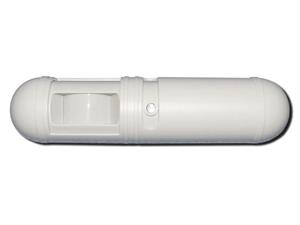

AI NEXT OD-22 High Sensitivity Request To Exit Passive Infrared Detector (PIR)

AI NEXT OD-22 High Sensitivity Request to Exit Passive Infrared Detector (PIR)

The OD-22 passive infrared sensor is specifically designed for request to exit applications, includes qualified motion analysis. The sensor may be mounted to frame header, wall or ceiling. Intended for indoor use only.

Specifications	OD-22
Supply Voltage	12-24VDC or VAC
Supply Current	18-30mA@12-24VDC,45-80mA@12-24VAC
Relay Output	2C Contact(N.C/N.O), 24VDC 1A Max.
Detection Type	Passive infrared
Relay Hold Time	0.5-64 seconds
LED Indication	Red
Operating Temp	-14° F to 131° F(-10° Cto55°C)
Weight	0. 4Ib (0. 18kg)
Range	Coverage 12x5 ft at 7ft high,30x12 ft at 15 ft high(Adjustment)
Humidity	0-95% non-condensing
Dimensions	6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Other Part Numbers:  OD22, OD-22, AL-OD-22, ALP-OD-22
