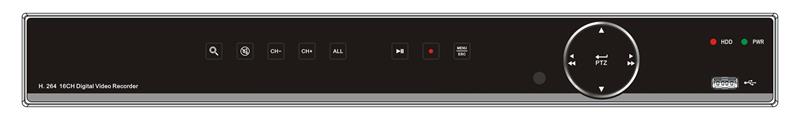

Aleph AHD1610X DVR 1080p Analog High Definition over Coaxial

Standard Model

Aleph HD1610X  (1-HDD)

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Video-input /output

4CH inputs / VGA and HDMI output

Audio input /output

4CH inputs /1CH output(RCA)

Display

resolution

PAL:1080p  NTSC:1080p

feature

single/ Quad/S.E.Q.

Record

resolution

PAL:1080p  NTSC:1080p

speed

PAL:25fps(each ch) /  NTSC: 30fps(each ch)

Recording Mode

Continuous/Manual/Motion detect

Playback Channel

1/4CH, or Via CMS, Mobile for 1ch playback, laptop for 1/4Ch playback
Local DVR: 1~4ch
PC/MAC: 1~4ch
Smart Phones: 1ch (using app)

 Playback speed

PAL:25fps(each ch) / NTSC: 30fps(each ch)

Sensor & Alarm I/O

4 inputs /1 output

Network Type

Lan, DHCP, and DDNS

E-mail Notifications

Yes, Support

HDD interface

1SATA HDDs, up to 4TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

PTZ Control

yes

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA

800*600,1024*768,1280*1024,1440*900,1920*1080

HDMI

1080P

IR Extender Port

yes

 CLOUD

Optional

APF  - P2P

Yes  ( Auto Port Fowarding )

Mobile Push

Optional

Dimension(WxDxH)

11.811  x  8.937  x  2.086 inches
