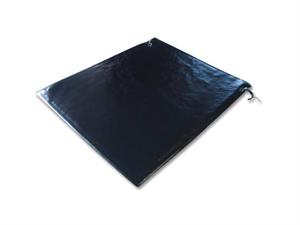

AI NEXT PSW2 Pressure Switch Alarm Mat

AI NEXT PSW2 Pressure Sensor Mat

Our Aleph PSW2 series pressure mats are an excellent choice for hard to protect areas. Simple operation, low cost, ease of installation and most importantly, no false activations make pressure mats ideal for entry and area protection.

Features

• Waterproof
• Indoor/Outdoor Applications
• High Traffic Area Design
• Thermo Sealed
• Normally Open Switch (NO)
• UPC:  6938942620618

Specifications

Alarm Out:	Normally Open (NO), 24VDC, 5mA max.
Bear Weight:	22 lbs. min, 1,100 lbs max
Material:	Black PVC
Dimensions:	24 x 20 x .20 Inch (609.6 x 508 x 5 mm)
Operation Humidity:	Ph, 95% max
Operation Temperature:	-76 °F ~ 176 °F (-60 °C ~ 80 °C)

Other Part Numbers:  AIN-PSW2, AL-PSW2, ALP-PSW2

Primary Uses:  Doormat trigger, safety on switch, parameters security intrusion trigger, E-stop trigger, off-limits area trigger, bed escape alarm trigger, and many, many more trigger uses…
