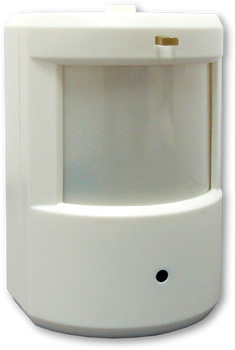

Aleph XPH737IR Passive Infraread (PIR) Detector/Pinhole Camera 700TVL 960H

<< Previous in Video Surveillance Next in Video Surveillance >>
Aleph XPH737IR Passive Infraread (PIR) Detector/Pinhole Camera 700TVL 960H
MSRP: $148.52
Price: $113.76
You Save: $34.76 (23 %)
In Stock: 2
Item Number: XPH737IR
Manufacturer: AI NEXT, LLC
Manufacturer Part No: XPH737IR

Aleph XPH737IR 960H Covert Camera

The new generation XPH737IR camera is great for any indoor environment that calls for an incognito surveillance system. Also great for low light conditions with its high resolution 700TVL’s and 960H technology.



Features

  • PIR case with built in Invisible IR LEDs
  • 32 ft or more IR range
  • 3.7mm Pinhole Lens
  • Day & Night function
  • 960H
  • D-WDR
  • Analog BNC Connection
  • 2.1mm CCTV female power plug
  • 2-wire loop NO/NC alarm I/O plug



Specifications

SpecificationXPH737IR
Video System NTSC PAL
Resolution 700 TVL
Sensor 1/3" 520K Sony Super HAD II Color CCD
Number of Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning Frequency 15.734KHz(H) x 59.94Hz(V) 15.625KHz(H) x 50Hz(V)
Scanning System 2:1 Interlace
S/N Ratio More than 52 dB (AGC Off)
Min. Illumination 0.1LUX (F 1.2)
Gamma Correction 0.45 Approx.
Video Output 1.0Vp-p / 75Ω
Lens Pinhole Lens 3.7mm
Power Source DC12V 500mA
IR LED 24pcs
Operating Temp -10°C ~ +50°C
Power Consumption Max 3.0 Watt
Dimensions (mm) 62(W) x 90(H) x 48(D)
Weight 120g



Download the complete specification sheet
