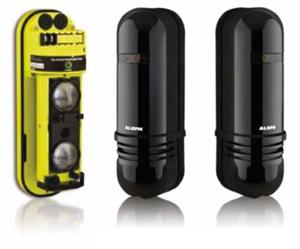

Aleph XA100 Dual Photoelectric Beams 100m

AI NEXT XA100 Dual Photoelectric Beams 100m
(Formerly: Aleph XA100D)

Photo Beams (Invisible Fence) can be used for defense zone perimeter security, entry alert or as a trigger for an open/close gate system. Solutions for many applications, which require both beams to be broken in order to trigger (NO/NC) an alarm event.

• 4 Channel Selectable Frequency
• Stackable Beams
• Dual Beam Pulsed Infrared
• Alarm Trips Only When Both Beams Are Interrupted
• NO/NC (SPDT Form “C”) Dry Contact Relay Output
• Adjustable Beam Response Time
• Built-in Alignment Center
• Can beused in conjuntion with a meter @ max PPV DC
• Detection Distance
• 100 meter Outdoor (330 ft)
• 200 meter Indoor (660 ft)
• Color:
• UPC:  999999416732  (Black)  P/N:  XA100
• Replaces P/N:  HA350D, HA-350D, AL-HA350D, AL-HA-350D



Specifications

Specifications	XA100
Coverage	330 ft (100m) Outdoor 660ft (200m) Indoor
Interruption Period	40msec/ 100msec/ 400msec/ 700msec
Supply Voltage	DC10 ~ 28V
Consumption Current	85mA max
Power indicator	Green LED on when transmitter is powered
Environment	Temperature: -25 ~ +55C Humidity: RH 95% max
Weight	Transmitter: 520g Receiver: 550g
Accessories	Pole mounting brackets, hook, screws, installation manual

* Other Part Numers: XA100, XA-100, XA100, XA-100, ALXA100, AL-XA100, AL-XA-100, ALXA100, AL-XA-100, ALPXA100, ALP-XA-100, ALPXA100, ALP-XA-100, XA-100D, XA100D


  Download - Download - Aleph XA100 Dual Photoelectric Beams Spec sheet
