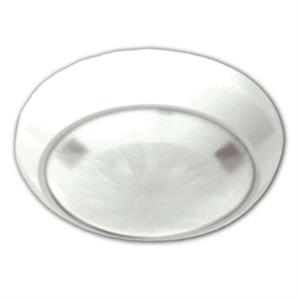

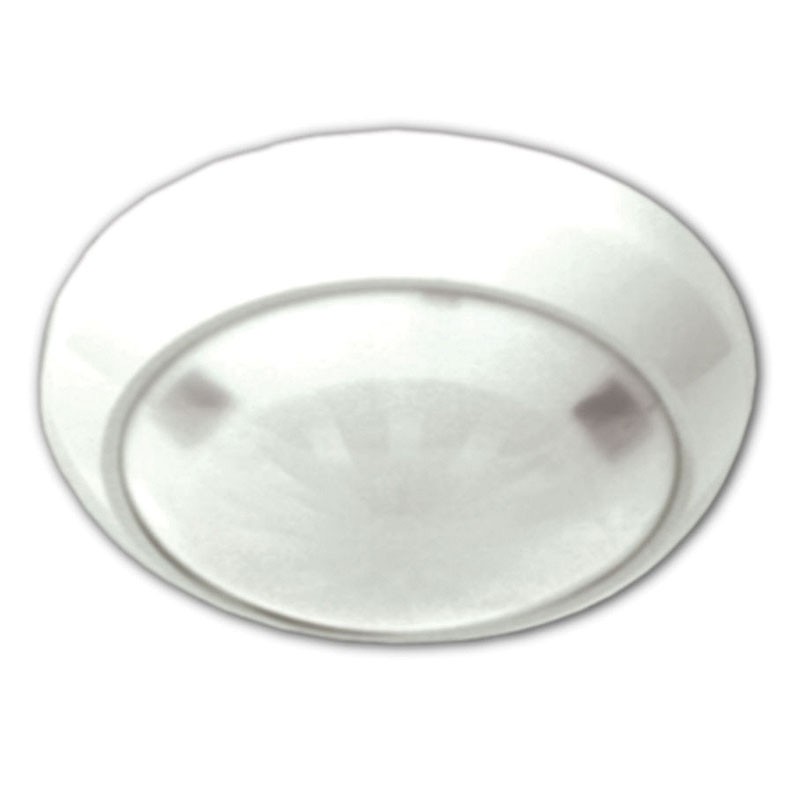

Aleph SP360D Passive Infrared Detector (PIR)

Aleph SP-360D Passive Infrared Detector

Aleph Panorama 360D PIR affords optimum waide area - 360 degree - coverage in a sleek, low profile ceiling mount passive infrared detector.  The attractive design harmonizes with any detector.

The hard cover Panorama 360D is completely sealed against insects, and is unaffected by drafts. Mounting is fast and easy. Three walk test LEDs allow verification of system readiness, and enable testing from any angle.

The specially designed, 100% tested dual pyroelectric elements are ultr-sensitive, capable of detecting motion from any angle approaching, receding or cross pattern.
State-of-the-art SMO circuitry maintains longterm trouble-free performance and excellent RFI Immunity. Plus Aleph confidently provides a seven year warrany.

Adjustable sensitivity, walk test disable, integral tamper switch, 1-2-3-4 adjustable pulse count, and alarm memory with first to latch feature are designed in to give you everything you've asked for in a ceiling mount. 360 degree PIR quality, reliability, affordability and uncompromising performance.

• 360 degree Coverage with 46' Range at 10' (14m x 3m)
• 50 Detection Zones
• Unique Interlocking Pyroelectric Element
• Double-Sealed, Insect-Proof Housing
• NC (SPST) Dry Contact Relay Output
• Alarm Memory with First-to-Latch Feature
• Directional Walk Test LEDs
• High-Low Sensitivity Adjustment
• Selectable 1-2-3-4 Pulse Count
• UL Listed
• 7-Year Warranty



Specifications

Specifications	XP-360D
Detection Range	46 feet
Detection Radius	360 degrees
Detection Zones	50
Pulse Count	Selectable 1 - 4
Sensitivity Adjustment	High/Low
Alarm Periood	2 sec +/- 0.5 sec
