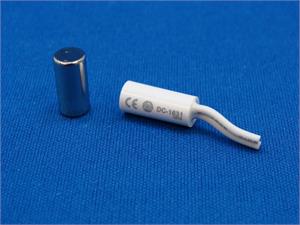

Aleph DC-1631 Magnetic Alarm Contact Press Fit and Recessed - 10 Pack

Aleph DC-1631 Magnetic Alarm Contact Press Fit and Recessed

• High Quality Magnetic Contact
• Hermetically Sealed Switch
• Rhodium Over Gold Reeds
• High Grade Magnets
• Recessed Fit Magnetic Contacts
• Mini Size
• Normally Closed Loop (NC)
• 17/25" (0.68") Wide Gap (17.272mm)
• Designed for thin door frames and tight fit windows

Package Includes:

• Recessed Magnets 1/4" Dia. 9/16" Length (6.35mm x 14.2875mm)
• Contacts 1/4" Dia.  9/16" Length (6.35mm x 14.2875mm)
• 18" Wiring (UL-1007 AWG#22) Leads
• Simple Installation Guide
• Color:
• UPC:  780673401433 (White)  P/N:  DC-1631W
• UPC:  780673401846 (Brown) P/N:  DC-1631B
• UPC:  780673401723 (Gray)   P/N:  DC-1631G
• Max Contact Rating 24VDC, 0.01A, 0.3W


                   LIFETIME GUARANTEE
          EN50131-1:2004, TS50131-2-6:2004, PD6662:2004
             SECURITY GRADE 2, ENVIRONMENTAL CLASS II

* Other Part Numbers:  DC1631, DC-1631, DC-1631W, DC-1631B, DC-1631G, DC1631W, DC1631B, DC1631G, AL-DC-1631, AL-DC-1631WB, AL-DC-1631W, AL-DC-1631B, AL-DC-1631G, AL-DC1631W, AL-DC1631B, AL-DC1631G, ALP-DC-1631, ALP-DC-1631W, ALP-DC-1631B, ALP-DC-1631G, ALP-DC1631W, ALP-DC1631B, ALP-DC1631G
