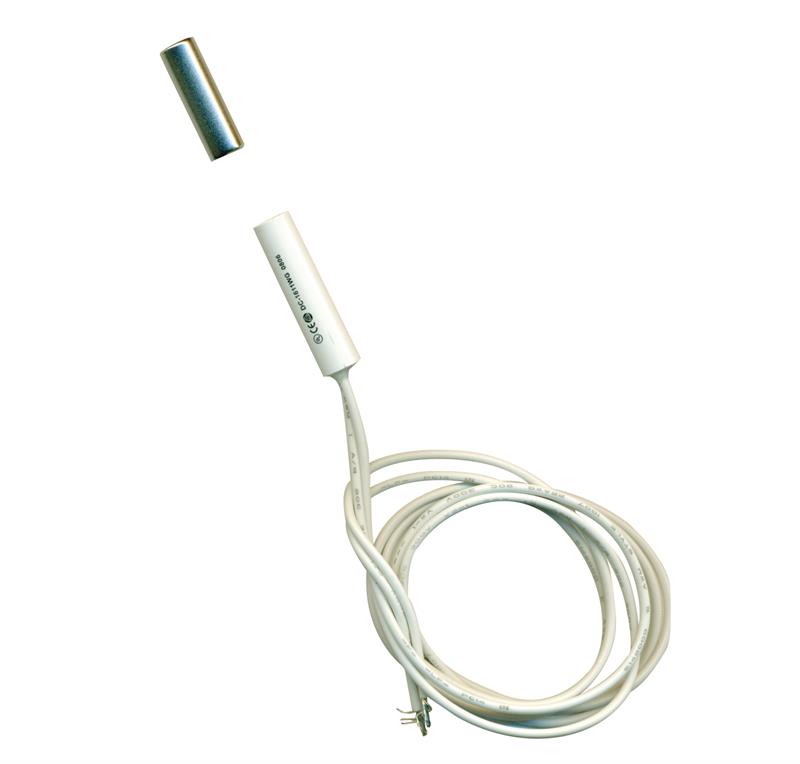

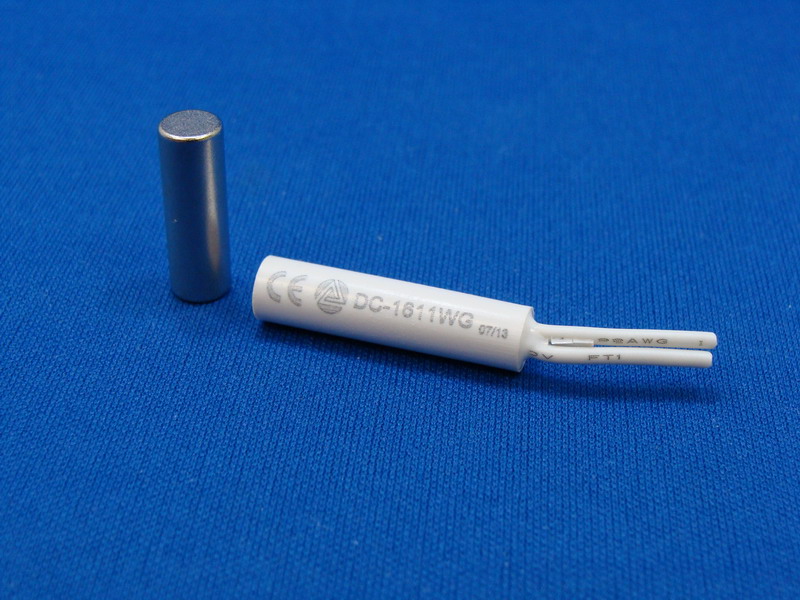

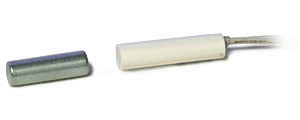

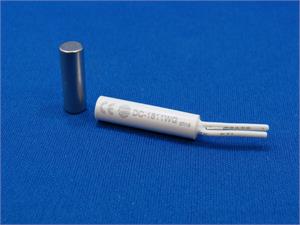

Aleph DC-1611WG Magnetic Alarm Contact Press Fit and Recessed - 10 Pack

Aleph DC-1611WG Magnetic Alarm Contact Press Fit and Recessed

• High Quality Magnetic Contact
• Hermetically Sealed Switch
• Rhodium Over Gold Reeds
• High Grade Magnets
• Press Fit and Recessed
• Normally Closed (NC) Loop
• Designed for thin doors and tight fit windows
• 1" Gap (25.4mm)

Package Includes:

• 1/4" Recessed Bare Magnets, 3/4" Length (6.35mm D x 19.05mm L)
• 1/4" Mini Contacts, 1" Length (6.35mm D x 25.4mm L)
• 12" to 18" Wiring (UL-1007 AWG#22) Leads / Crush Resistant
• Simple Installation Guide
• Color:
  • UPC:  780673401709 (White)  P/N:  DC-1611WGW
  • UPC:  780673401716 (Brown)  P/N:  DC-1611WGB
  • UPC:  780673401723 (Gray)   P/N:  DC-1611WGG
• Max Contact Rating 30VDC, 0.2A, 5W


                   LIFETIME GUARANTEE
          EN50131-1:2004, TS50131-2-6:2004, PD6662:2004
             SECURITY GRADE 2, ENVIRONMENTAL CLASS II

* Other Part Numbers:  DC1611WG, DC-1611WG, DC-1611WGW, DC-1611WGB, DC-1611WGG, DC1611WGW, DC1611WGB, DC1611WGG, AL-DC-1611WG, AL-DC-1611WB, AL-DC-1611WGW, AL-DC-1611WGB, AL-DC-1611WGG, AL-DC1611WGW, AL-DC1611WGB, AL-DC1611WGG, ALP-DC-1611WG, ALP-DC-1611WGW, ALP-DC-1611WGB, ALP-DC-1611WGG, ALP-DC1611WGW, ALP-DC1611WGB, ALP-DC1611WGG
